Disguise Joins Lady Gaga’s Joanne Tour.
Lady Gaga kicked off her headlining concert tour ‘Joanne’ in Vancouver, Canada in August. Five 4x4pro media servers accompanied the superstar’s brand new tour, which supports her fifth studio album.
![](/sites/default/files/lady-gaga-4244-steve-jennings_0.jpg)

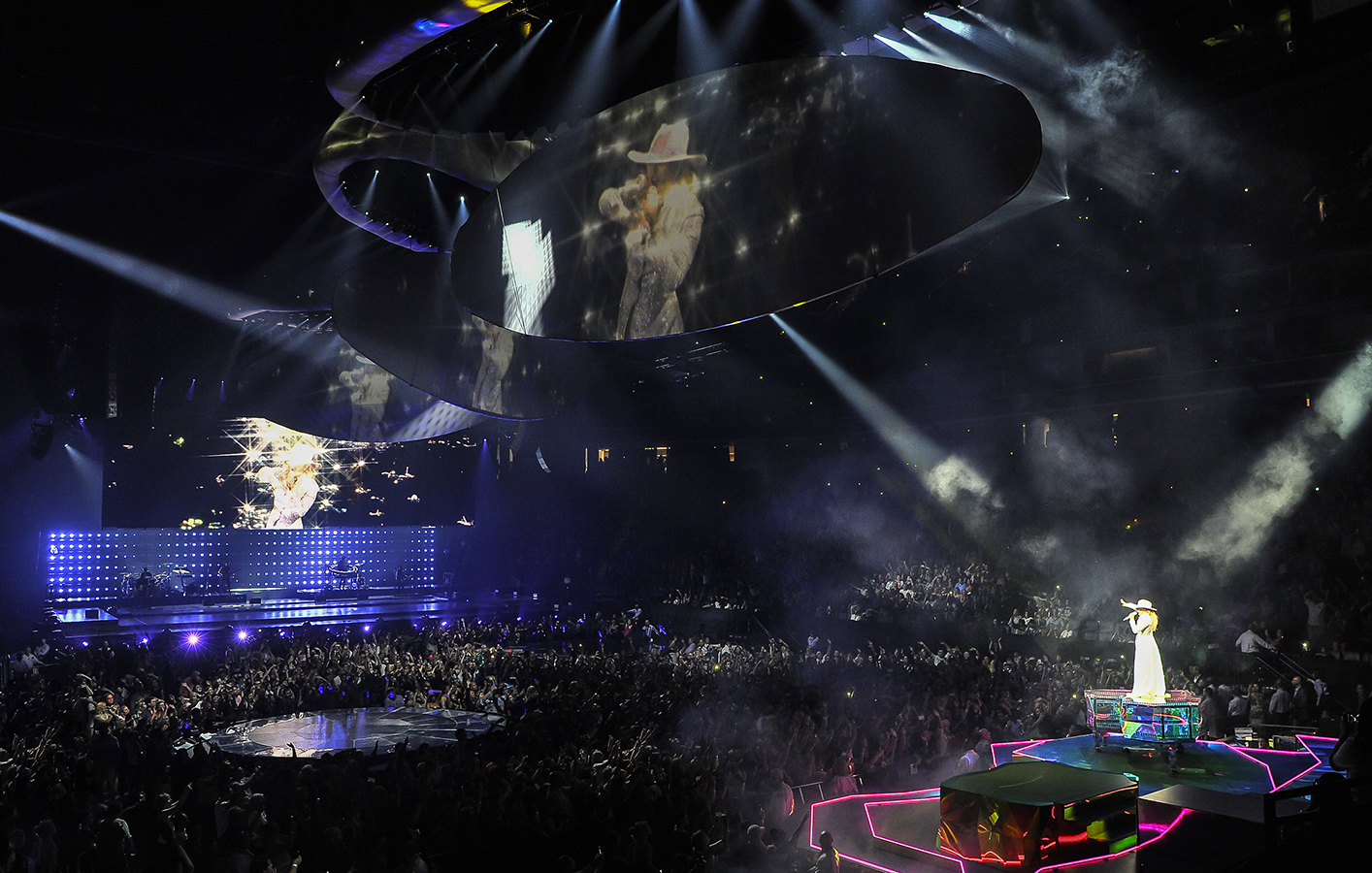

Fans always expect a spectacular show from Gaga, and Production Designer LeRoy Bennett hasn’t disappointed them. He designed the 85 ft. wide main stage with three automated lifts used for scenic props and staging equipment. Additionally, there are five performer wave lifts, faced with LED video panels. When the stage moves in unison, it appears as one big structure but it has actually been designed to shapeshift into different configurations; flat, elevated, criss-cross, diagonal and staircase, with content seamlessly tracking the various configurations powered by Disguise.
![](/sites/default/files/lady-gaga-3713-steve-jennings.jpg)

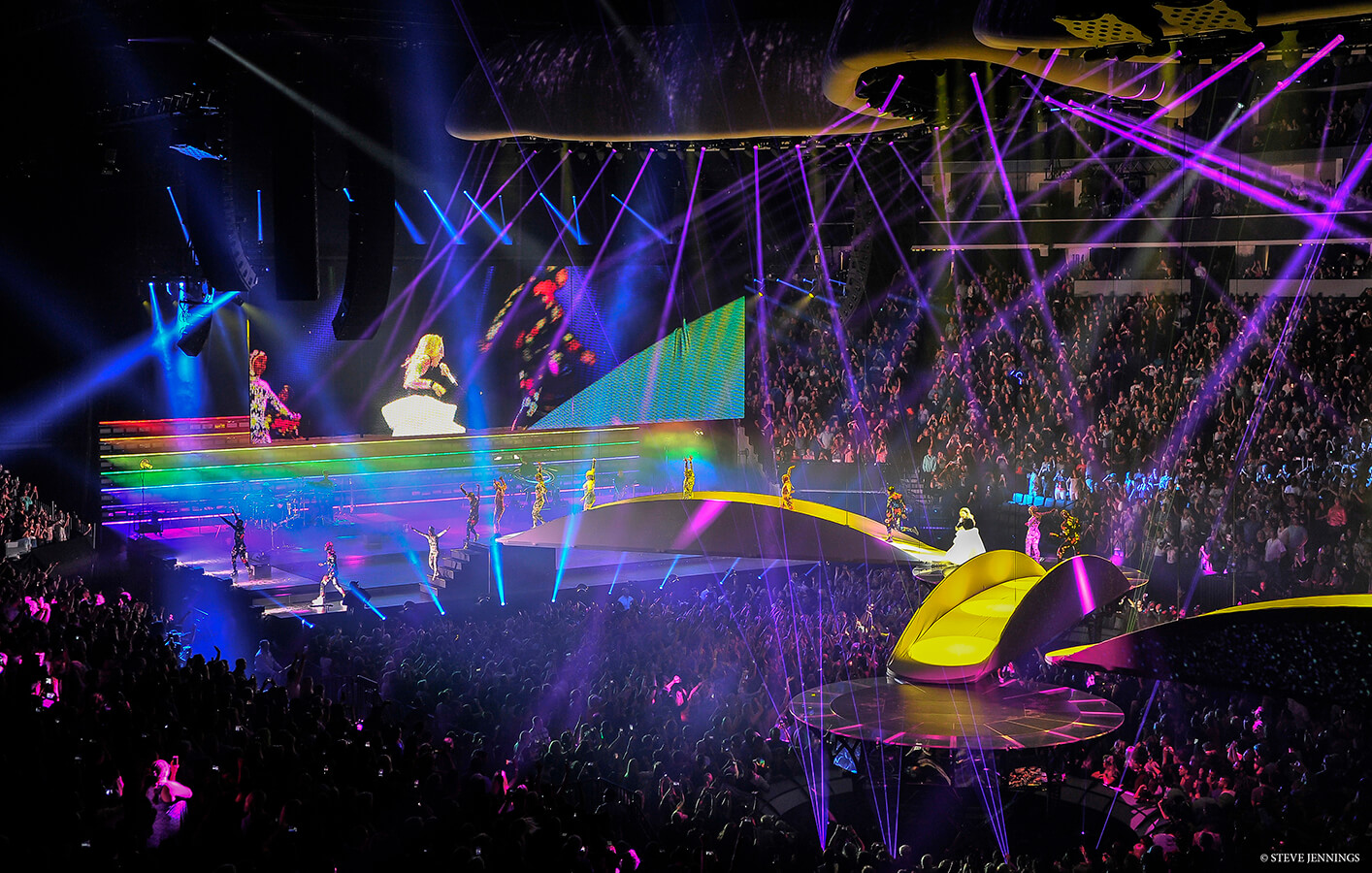

Overhead, three inflatable lighting pods, designed and manufactured by TAIT, stretch across the venue, each with an articulated bridge that unfolds into an oval projection surface. The bridges can land on two raised, automated platforms, creating a path over the audience and connecting the A stage to the B stage, which is clad in dichroic plexiglass and features a geometric piano filled with lasers.
![](/sites/default/files/lady-gaga-3540-steve-jennings.jpg)

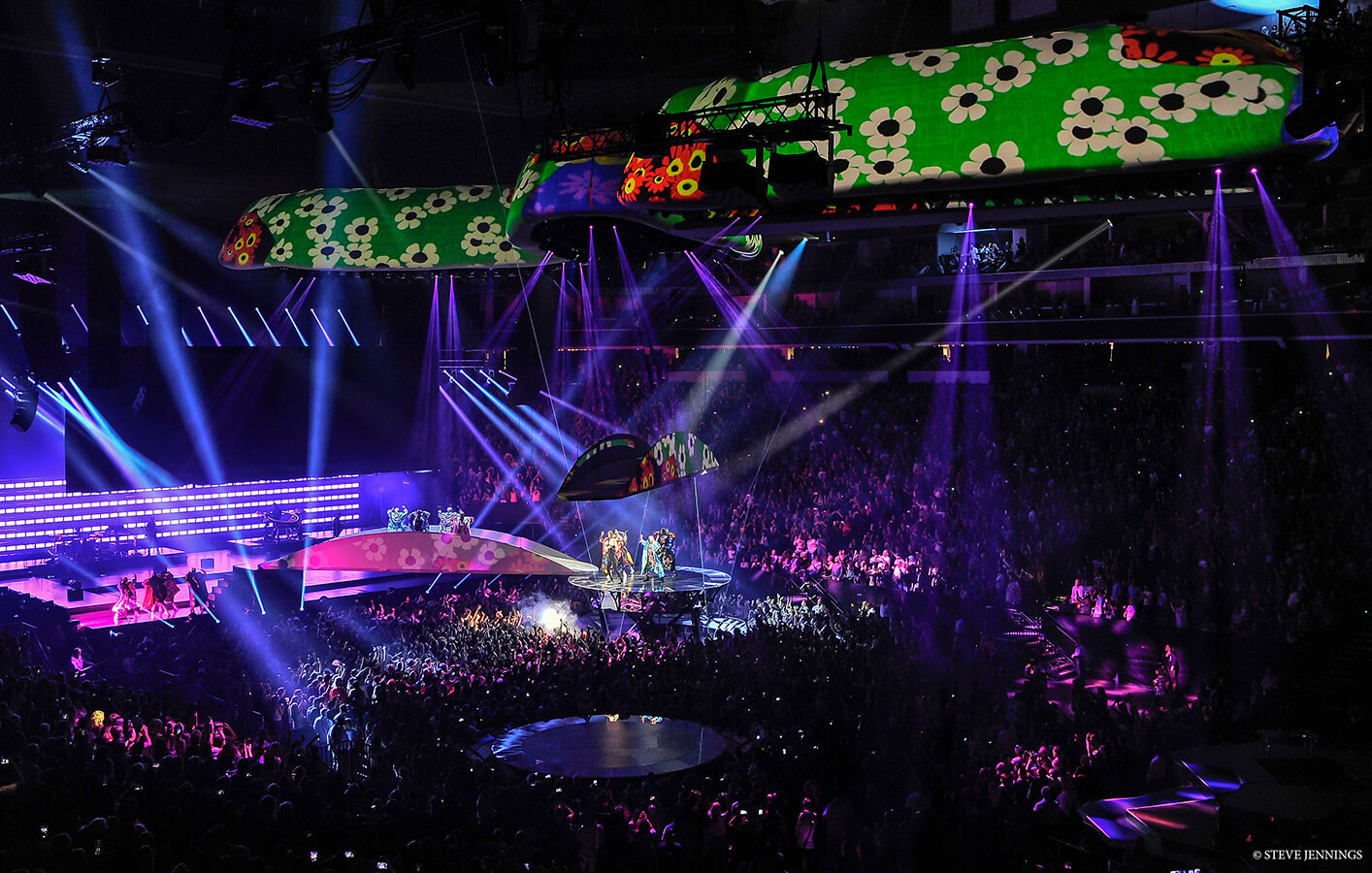

Five 4x4pros with three DVI VFC cards, 3G-SDI input, timecode and Art-Net control are deployed for the show. One serves as the primary, one is an understudy and three are fulltime output machines. Solotech provided all of the Disguise systems.
The Disguise solution was chosen for the tour because the creative team “needed to be able to previsualize and model the articulated movement of the bridges and lifts,” explains Loren Barton, Media Department Head and Programmer with Lumentech Inc. “The VFC cards allowed us to minimize the number of machines required to playback the content to the 28 projectors and LED outputs. It also allowed us to mockup, test and troubleshoot the automation system within the 3D space, which was incredibly helpful since we had limited time in the space with the actual set,” says Barton.
![](/sites/default/files/citifield_gaga-1119-of-16.jpg)

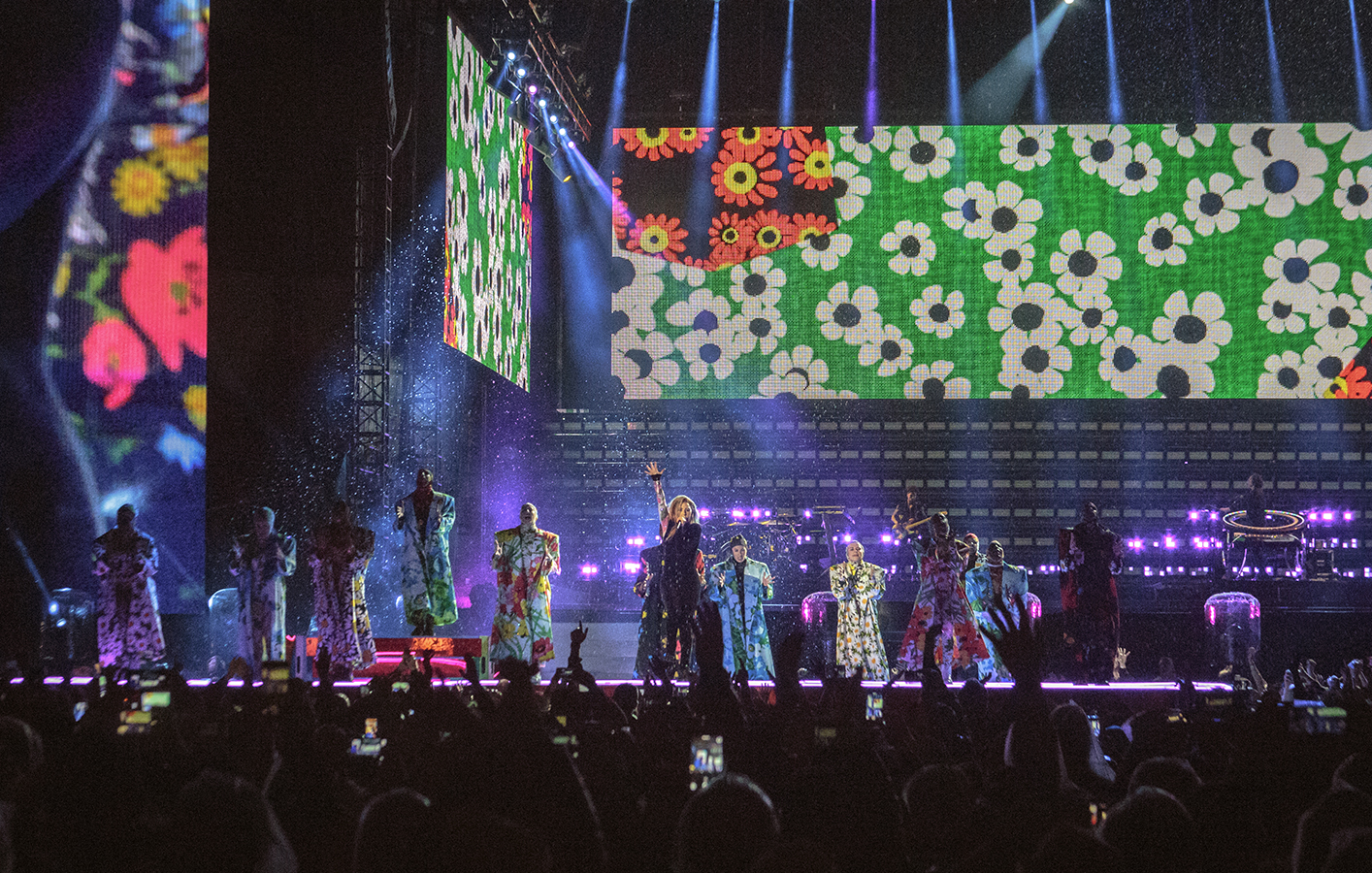

Using the Disguise software to previsualize the production was key to evaluating which lenses we would need and which angles would work to hit all of the surfaces in this design,” he notes. “The many mapping options to program the show also allowed us to look at ideas and projector locations quickly without having to re-render content to see if an effect would work."
Specifically, “using UDP feedback from the TAIT’s Navigator automation system we had to design and implement a solution to project onto the morphing objects with minimal calibration time. Ben Keightley, Disguise System Designer and Programmer, used a three-part model for each bridge and developed formulas to mimic the motion of the folding and unfolding to make sure the projections in our models stayed locked to the objects in reality.”
![](/sites/default/files/citifield_gaga-1126-of-16.jpg)

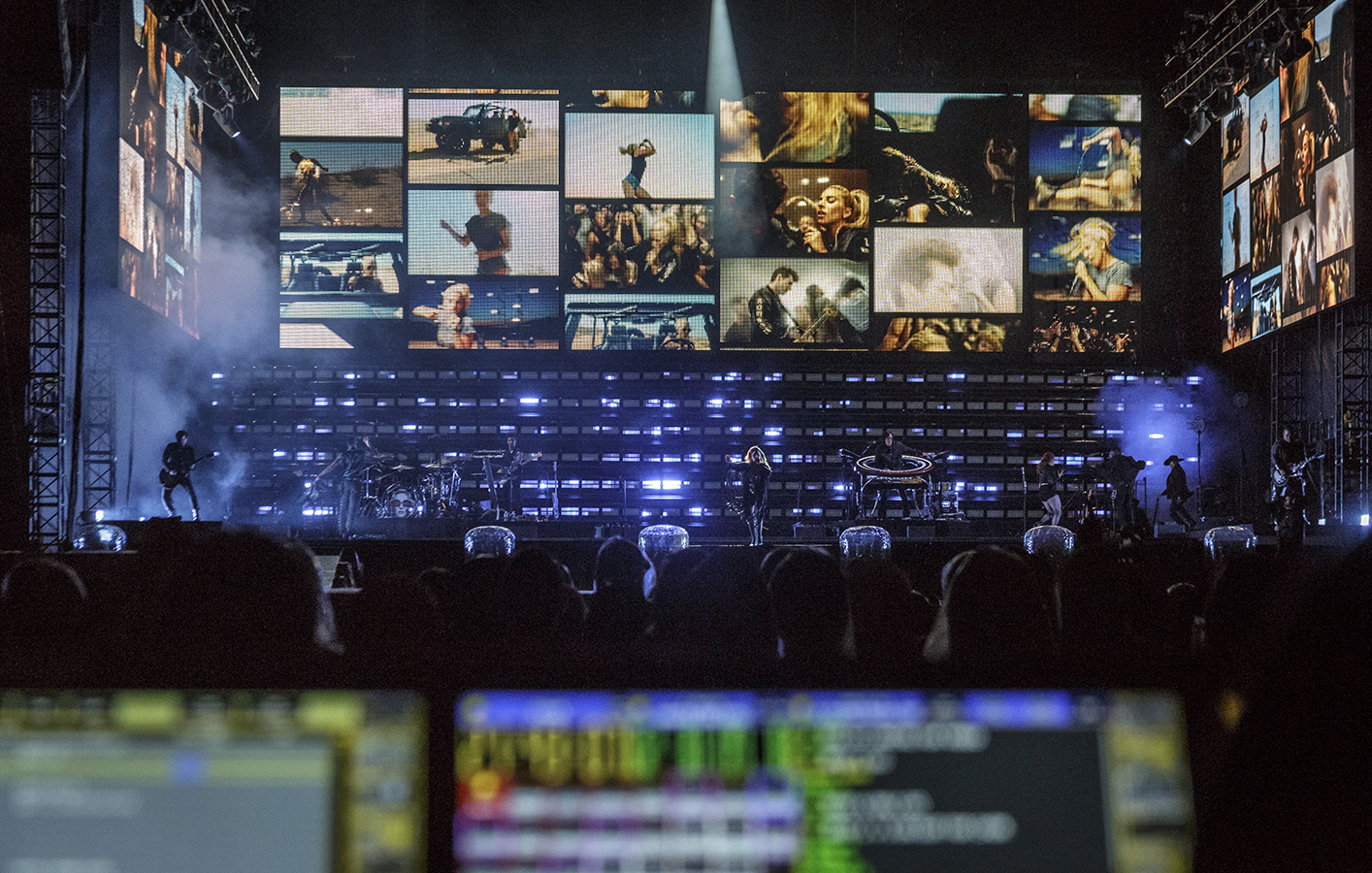

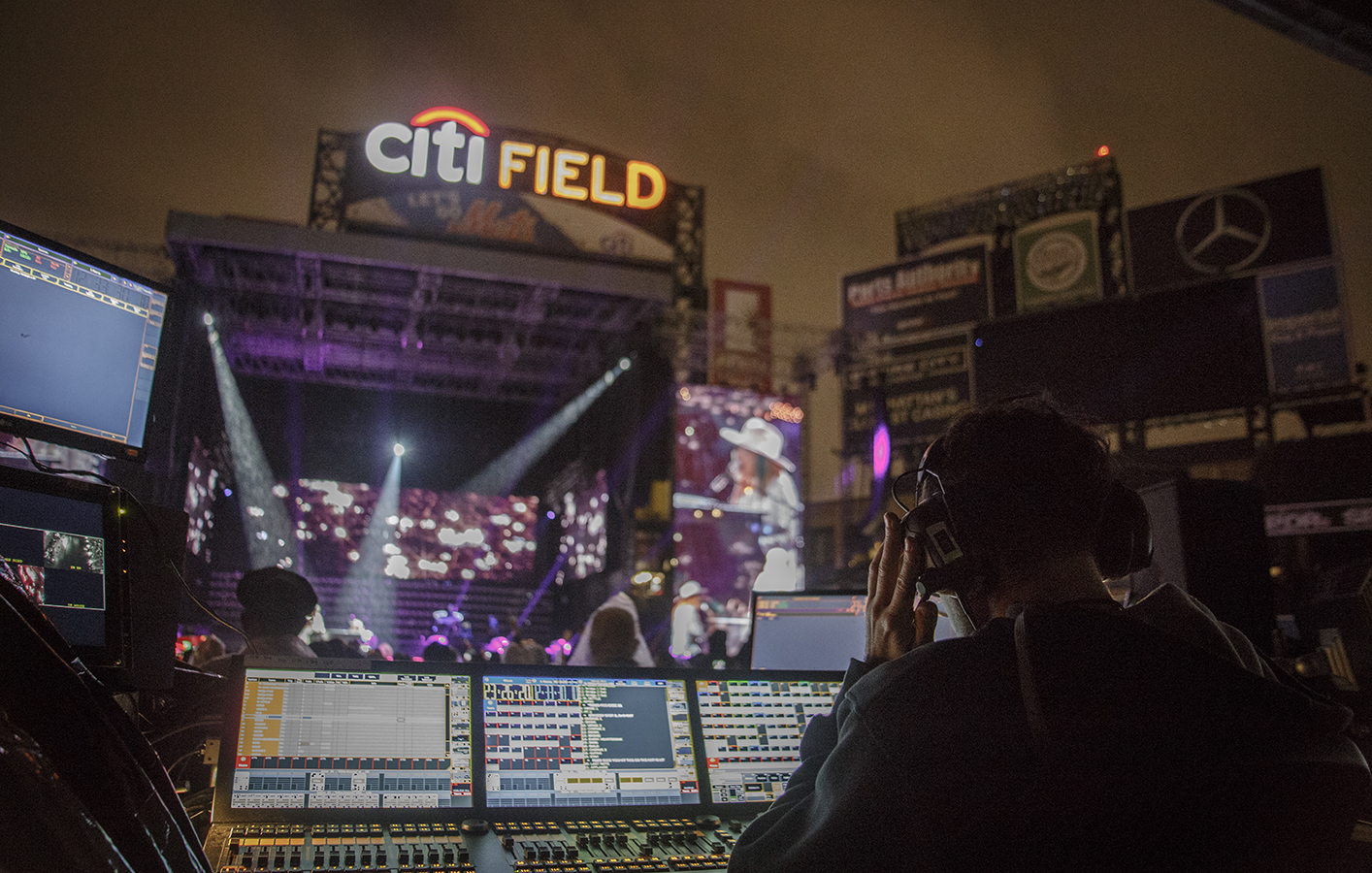

The Disguise solution boasts a number of features that are proving indispensable to the tour. “I always use SockPuppet DMX interface because of the importance of locking video programming to lighting control,” says Barton. “We use Art-Net control for sequencing because of how easy it is to edit and follow the programming that lighting is doing. When song edits happen, we can simply edit one timecode pool on the grandMA2 and not dig into timelines .”
![](/sites/default/files/citifield_gaga-1115-of-16.jpg)
Andreanne Lafrance, the Disguise Tech and Projectionist from Solotech, and Pascale Boileau, Projectionist from Solotech, “do an incredible job every day making sure the show looks perfect every night,” says Barton. “Arenas change size and shape, and the alignment has to be done in each location to ensure projections follow the set. The Disguise server streamlines this process and provides the tools to make sure the warps and blends create a seamless canvas.” In addition, QuickCal projector calibration “makes this show possible,” he claims. “QuickCal and warping are essential given the limited time the projectionists have to get the show aligned and calibrated. The QuickCal process has to take less than two hours since the show loads in with minimal pre-rig time.”
As with many shows we had a tremendous amount of media to ingest and process with limited programming and rehearsal time, the Disguise server rose to the challenge and delivered wonderful results and an excellent workflow,” concludes Barton.
