Pixel-Perfect Playback
Designed for live events and installations looking for a powerful yet accessible video playback solution, with the unbeatable performance and flexibility of the full Disguise ecosystem.
Your gateway to Disguise
The EX range is the perfect entry point into the Disguise ecosystem, providing pixel perfect video playback in a modular scalable architecture.
Our EX media servers will deliver unmatched performance and creative flexibility, allowing more creatives to work with the most advanced live visual experience platform in the world.
Why Choose EX?
Versatile
From live shows and corporate events to fixed installations, the EX offers unmatched playback capabilities to meet your project's demands.
Durable
Engineered in a ruggedised 2U chassis, the EX is built for long-lasting durability and seamless integration into any setup.
Scalable
Easily scale your production with the EX. Run it as part of a network for redundancy and failover with other EX machines.
Control
The EX can also run as a dedicated director and editor with the VX and GX range, distributing video playback across complex systems.
Cutting-edge
Featuring latest-generation technology, including a PCIe 5.0 motherboard and Nvidia Ada Lovelace GPU architecture, for increasingly complex visual effects.
Integrated
Unlock our Designer pixel mapping software and reap all the benefits of one integrated workflow from concept to delivery.
Where is the EX Range Used
The EX range is the go-to solution for system integrators and design consultants looking for a highly performant, reliable yet accessible machine to power any permanent installation such as museums, theme parks, cruise ships and immersive spaces, driven by the most advanced and integrated software and best in class 24/7/365 support.
Live events rental companies and screens producers can power an increasingly varied number of live shows with the EX range. Particularly suited for theatre shows that usually don’t require real-time video yet still want to deliver high-res 4K content and have reduced rack space.
Corporate events like keynotes and tech summits can deliver seamless and visually impactful presentations thanks to the EX’s smooth playback of high-quality content, engaging audiences with crystal-clear visuals.
The EX range is the go-to solution for system integrators and design consultants looking for a highly performant, reliable yet accessible machine to power any permanent installation such as museums, theme parks, cruise ships and immersive spaces, driven by the most advanced and integrated software and best in class 24/7/365 support.
Live events rental companies and screens producers can power an increasingly varied number of live shows with the EX range. Particularly suited for theatre shows that usually don’t require real-time video yet still want to deliver high-res 4K content and have reduced rack space.
Corporate events like keynotes and tech summits can deliver seamless and visually impactful presentations thanks to the EX’s smooth playback of high-quality content, engaging audiences with crystal-clear visuals.
The EX range is the go-to solution for system integrators and design consultants looking for a highly performant, reliable yet accessible machine to power any permanent installation such as museums, theme parks, cruise ships and immersive spaces, driven by the most advanced and integrated software and best in class 24/7/365 support.
Live events rental companies and screens producers can power an increasingly varied number of live shows with the EX range. Particularly suited for theatre shows that usually don’t require real-time video yet still want to deliver high-res 4K content and have reduced rack space.
Corporate events like keynotes and tech summits can deliver seamless and visually impactful presentations thanks to the EX’s smooth playback of high-quality content, engaging audiences with crystal-clear visuals.
What's Included
EX 2
The EX 2 features two 4K video outputs and is the ideal entry point into the Disguise ecosystem, suited for small-scale installations and live shows requiring a ‘multiple of 2’ video output capability with no video capture and the ability to scale out content over time.
See architectural specifications
EX 2C
Including the same technical specifications as the EX 2, the EX 2C also features video capture as standard with up to 1x 4K DCI or 4x Full-HD video capture inputs.
See architectural specifications
EX 3+
The most powerful in our EX range, the EX 3+ features three 4K video outputs and up to 2x 4K DCI or 8x Full-HD video capture inputs. Ideally suited for mid-scale installations and shows delivering impactful content via LED walls or projectors at scale, also requiring a physical video input to enable 4K cameras to be used for audience interaction.
See architectural specifications
EX 2
The EX 2 features two 4K video outputs and is the ideal entry point into the Disguise ecosystem, suited for small-scale installations and live shows requiring a ‘multiple of 2’ video output capability with no video capture and the ability to scale out content over time.
See architectural specifications
EX 2C
Including the same technical specifications as the EX 2, the EX 2C also features video capture as standard with up to 1x 4K DCI or 4x Full-HD video capture inputs.
See architectural specifications
EX 3+
The most powerful in our EX range, the EX 3+ features three 4K video outputs and up to 2x 4K DCI or 8x Full-HD video capture inputs. Ideally suited for mid-scale installations and shows delivering impactful content via LED walls or projectors at scale, also requiring a physical video input to enable 4K cameras to be used for audience interaction.
See architectural specifications
EX 2
The EX 2 features two 4K video outputs and is the ideal entry point into the Disguise ecosystem, suited for small-scale installations and live shows requiring a ‘multiple of 2’ video output capability with no video capture and the ability to scale out content over time.
See architectural specifications
EX 2C
Including the same technical specifications as the EX 2, the EX 2C also features video capture as standard with up to 1x 4K DCI or 4x Full-HD video capture inputs.
See architectural specifications
EX 3+
The most powerful in our EX range, the EX 3+ features three 4K video outputs and up to 2x 4K DCI or 8x Full-HD video capture inputs. Ideally suited for mid-scale installations and shows delivering impactful content via LED walls or projectors at scale, also requiring a physical video input to enable 4K cameras to be used for audience interaction.
See architectural specifications
Which EX media server is right for you?
EX 2 |
EX 2C |
EX 3+ |
|
|---|---|---|---|
|
|
|
|
| Video output | 2x DisplayPort 1.4 | 2x DisplayPort 1.4 | 3x DisplayPort 1.4 |
| Video input | Input via NDI only | Up to 1x 4K DCI input or 4x Full-HD inputs via: 1x 12G or 4x 3G SDI (HD-BNC connectors) & 1x HDMI 2.0 | Up to 2x 4K DCI inputs or 8x Full-HD inputs via: 1x 12G or 4x 3G SDI (HD-BNC connectors) & 1x HDMI 2.0 |
| High-speed network | 2x 100Gb/sec (QSFP28) | 2x 100Gb/sec (QSFP28) | 2x 100Gb/sec (QSFP28) |
| CPU | AMD EPYC 2.4Ghz | AMD EPYC 2.4Ghz | AMD EPYC 2.45Ghz |
| GPU | NVIDIA RTX 4000 Ada | NVIDIA RTX 4000 Ada | NVIDIA RTX 4000 Ada |
| Motherboard | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 |
| Storage | 1.92TB Removable NVMe SSD | 1.92TB Removable NVMe SSD | 3.84TB Removable NVMe SSD |
| EX 2 | EX 2C | EX 3+ |

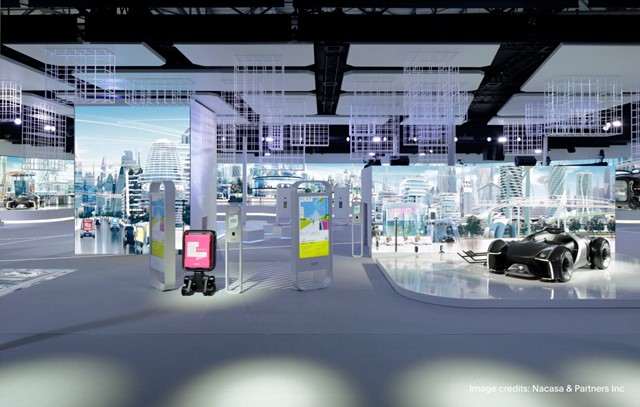

The Disguise EX 2C media server can efficiently control multiple projectors. There were also many changes and adjustments that occurred on site, but Disguise's flexible mapping correction functionality allowed us to make quick and accurate corrections.
System Integrator and Programmer at Toei Techno International
With You All the Way
Benefit from our unbeatable support packages with global service centres and round-the-clock care, ensuring your production will run without a hitch.
Learn more
Speak to an expert
Get in touch with our team to find the right EX solution to power your vision.
